Steel Processing

Stellar Steel now provides processed steel shapes such as wide flange, tube steel, channels, angle and flat bar. We have the ability to use the most recent state-of-the-art robotic system to perform the following applications for your steel projects:

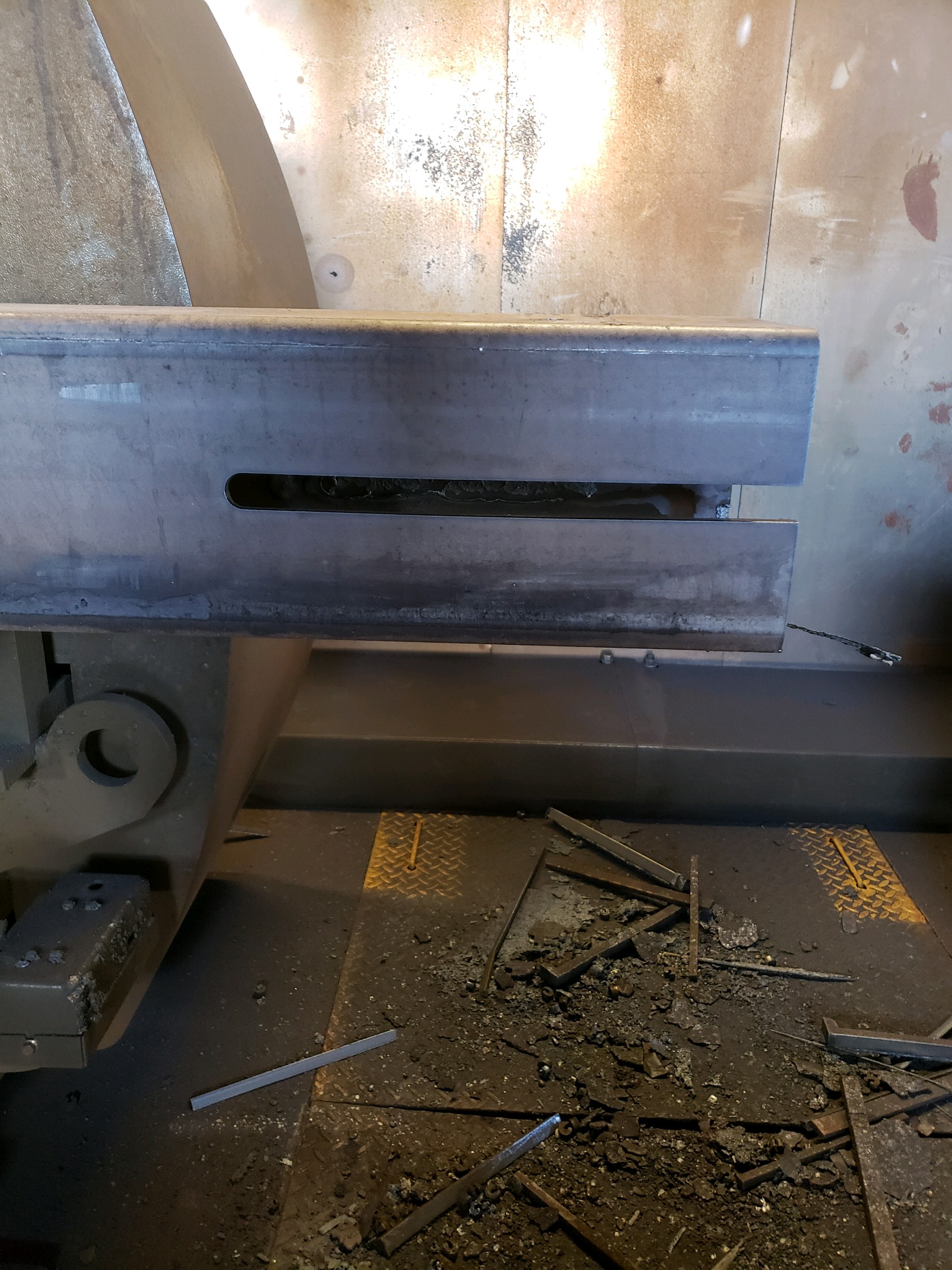

Close-up of a steel beam during processing, showing a precision-cut slot with metal shavings on the shop floor

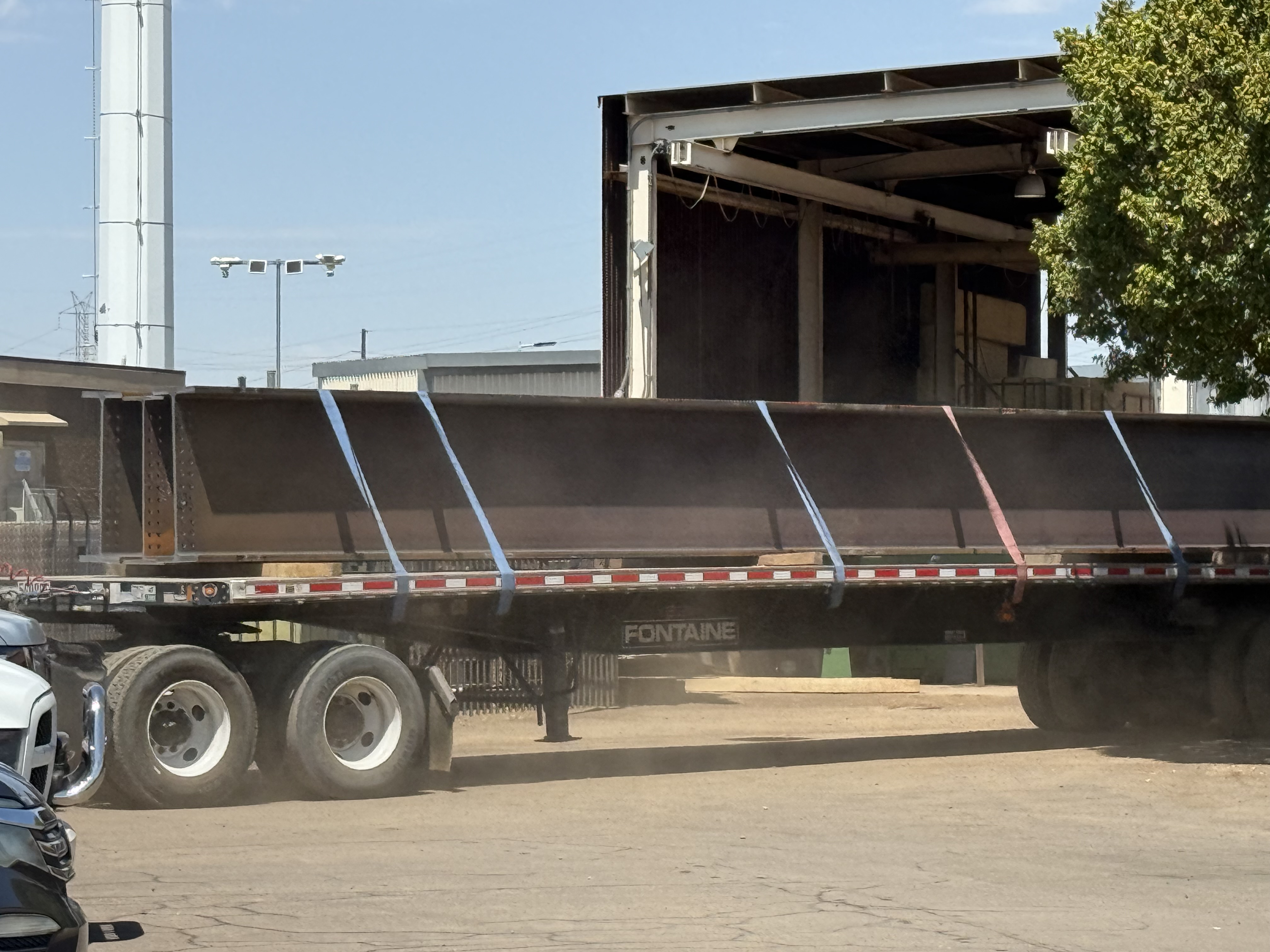

Processed steel beams secured with straps on a flatbed trailer, prepared for transport from a steel fabrication facility

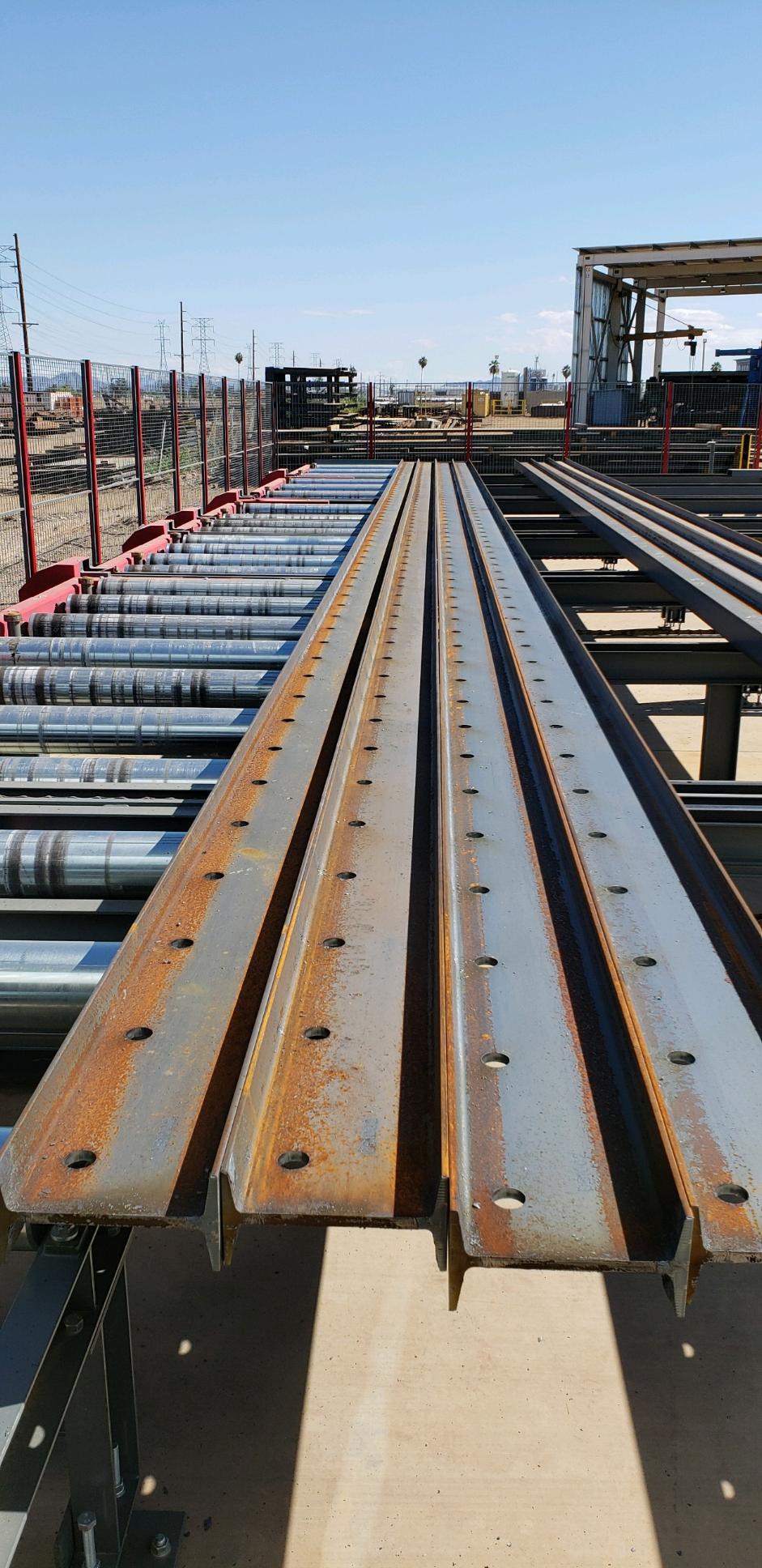

Steel beams with evenly spaced bolt holes moving along roller conveyors in a steel processing facility

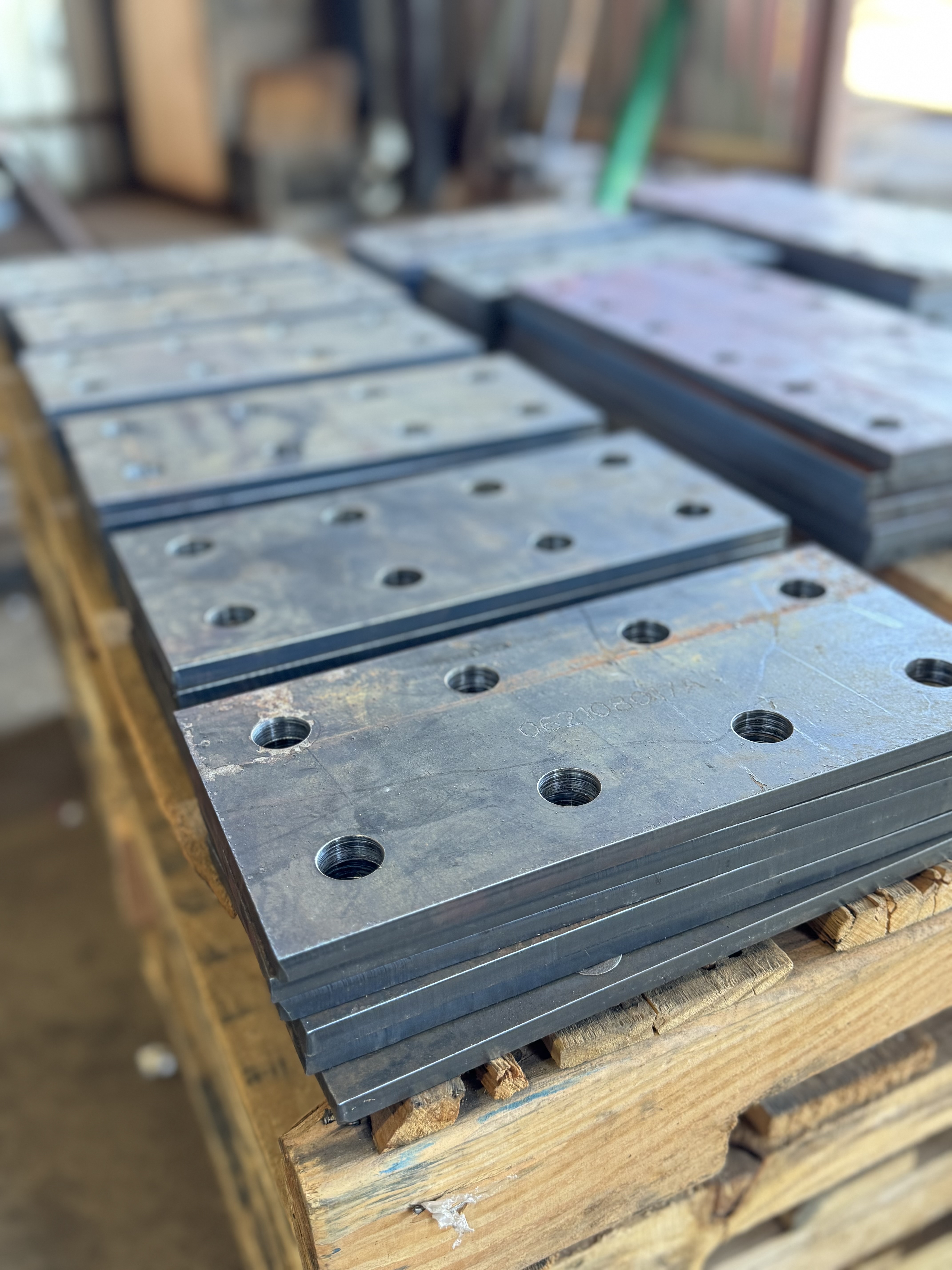

Stacked steel plates with precision-drilled bolt holes, prepared for structural fabrication and assembly

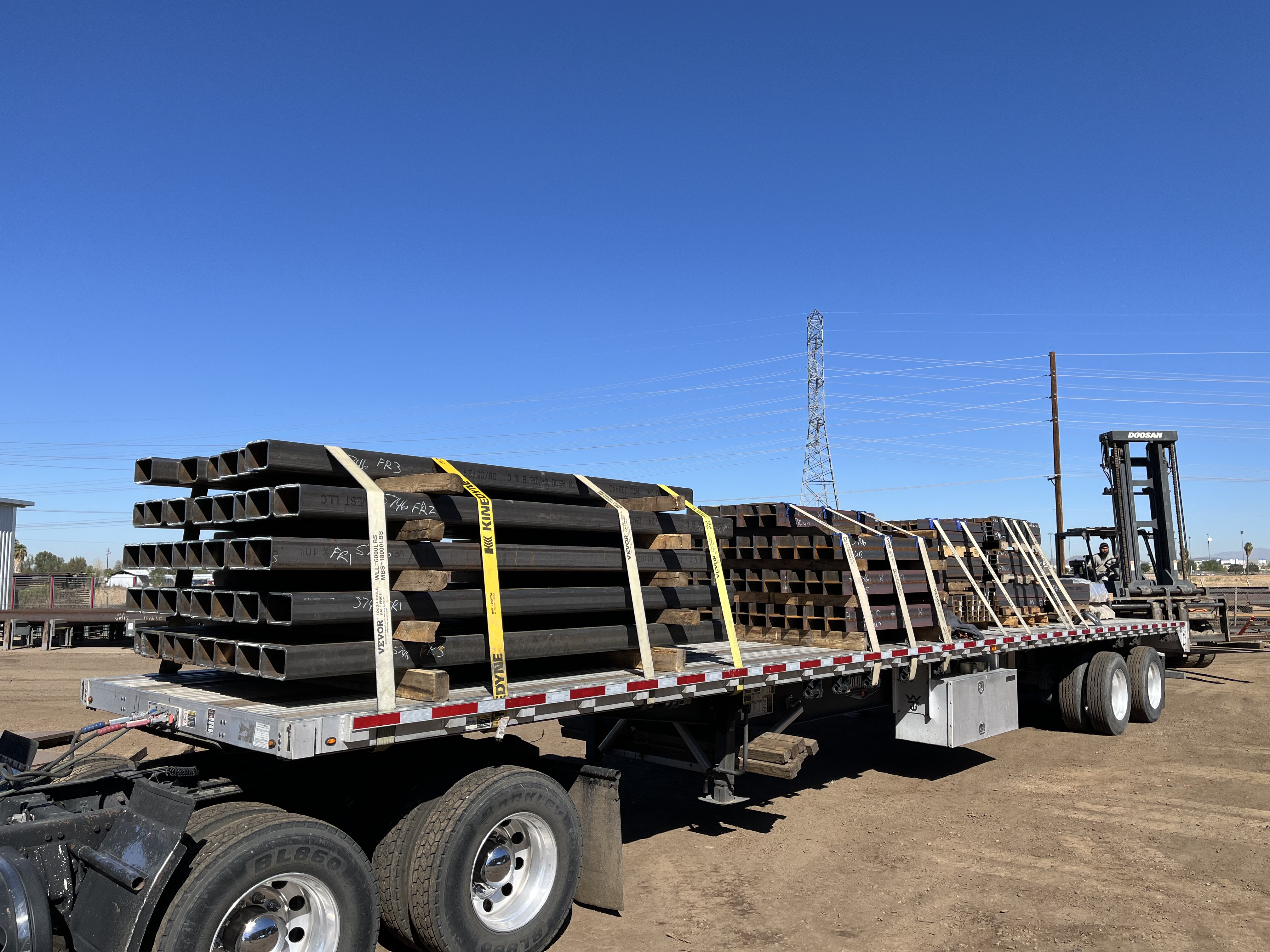

Stacked structural steel sections secured with straps on a flatbed trailer, ready for delivery from a steel processing yard

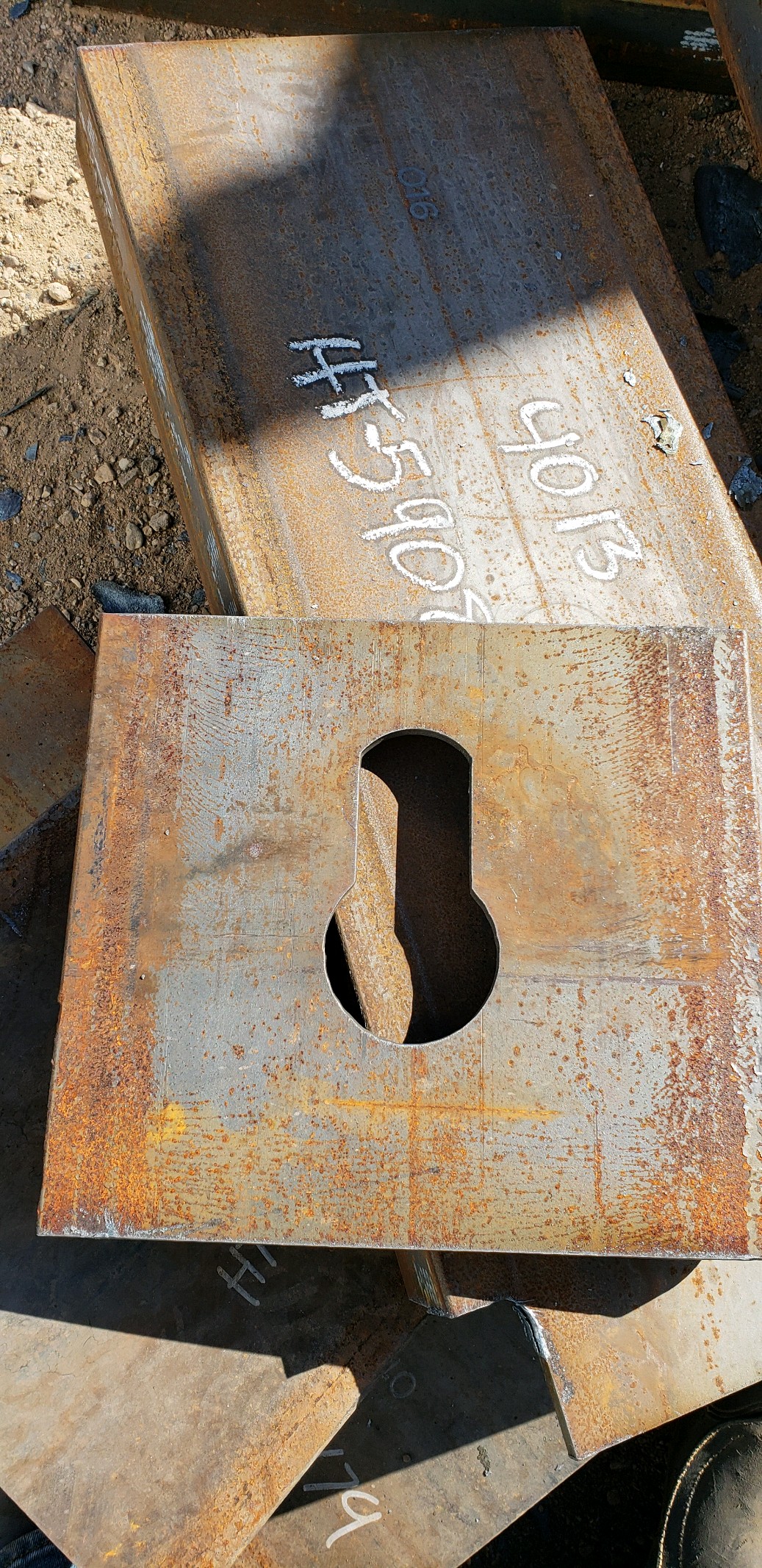

Close-up of a thick steel plate with a precision-cut slot opening, showing surface oxidation from processing

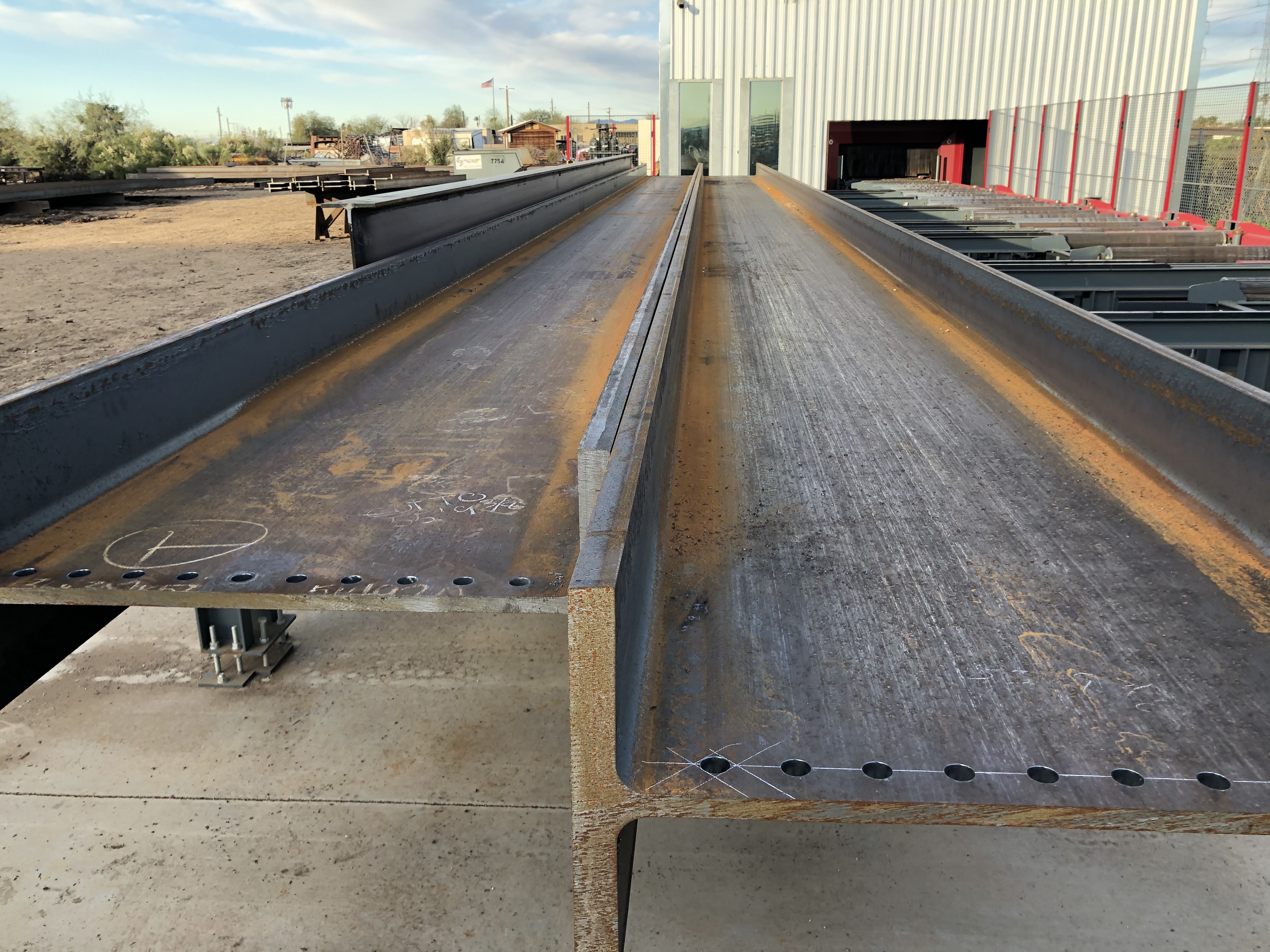

Long steel beams with drilled bolt holes aligned in rows inside a steel fabrication facility

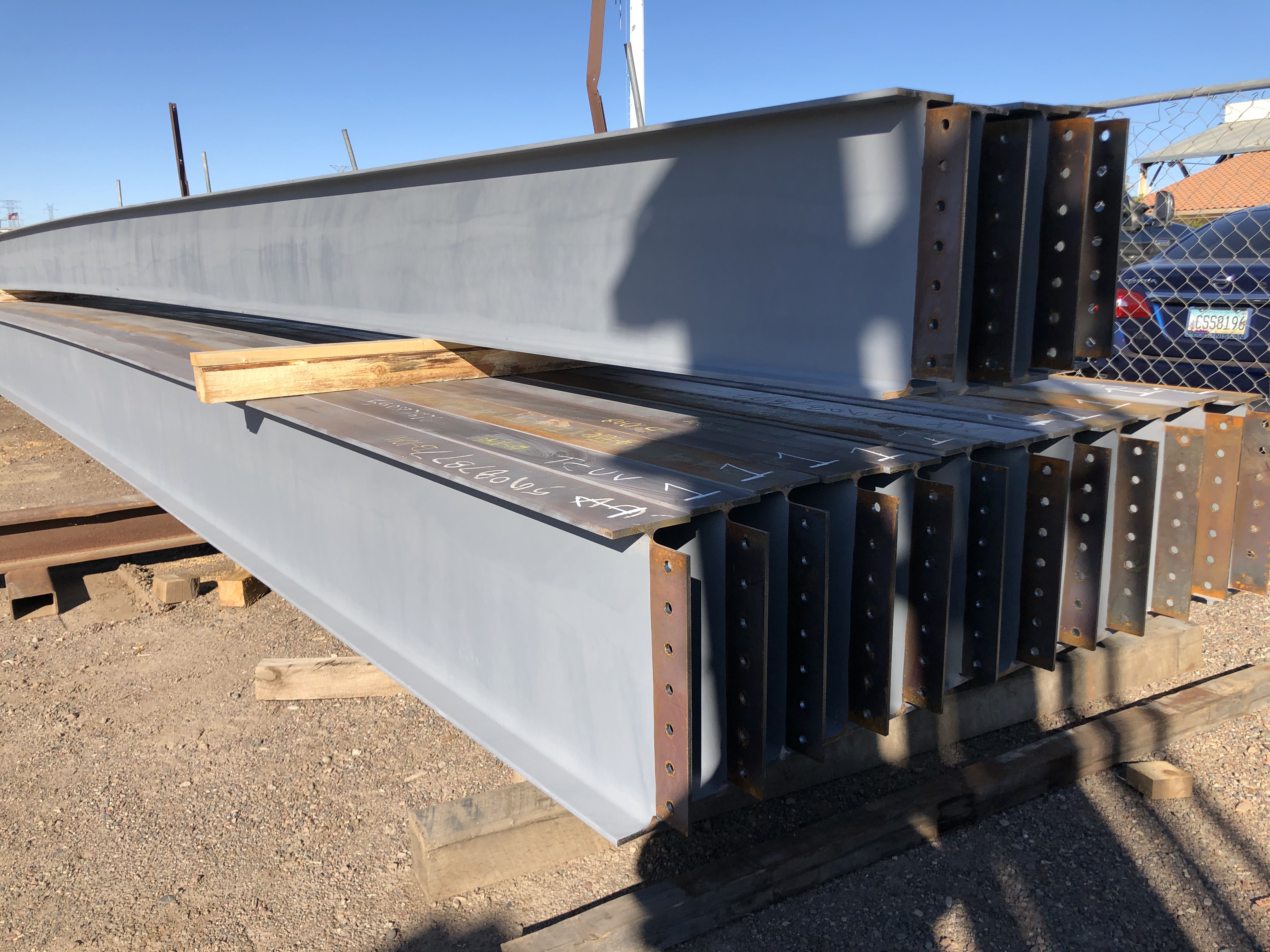

Primed structural steel beams stacked outdoors, showing bolted end plates and protective coating applied for installation

Close-up of a steel plate showing two cleanly drilled circular bolt holes with a smooth cut edge

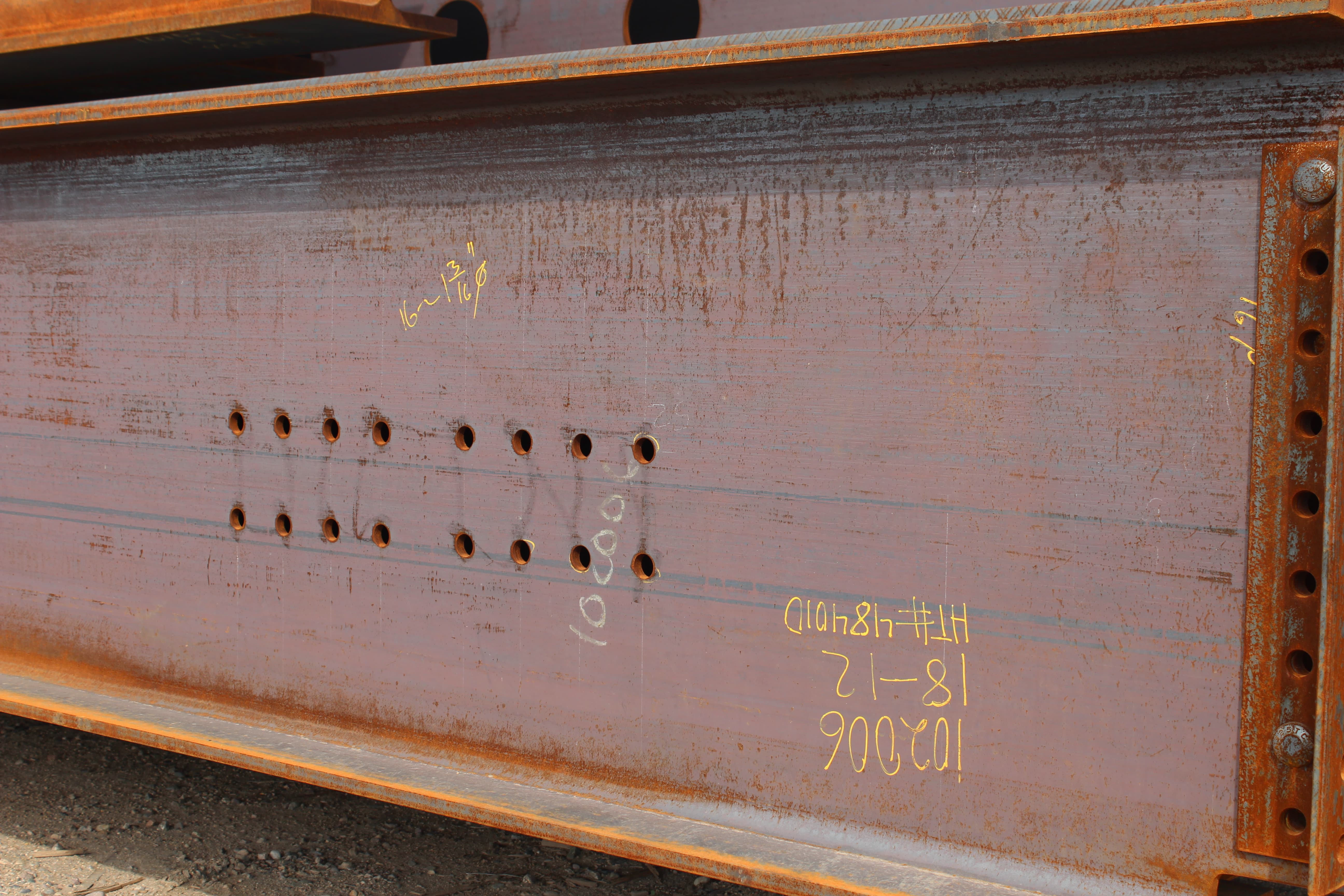

Structural steel beam with rows of drilled bolt holes and layout markings, prepared for fabrication and assembly

No items found.

Stellar’s system can handle steel up to 500 pounds per foot, 50″ deep members and over 61′ in length using a brand new 400 amp plasma and massive oxy torch techniques offers the following sizes we can achieve:

Product	Measurement unit	Minimum	Maximum
Beam width	inch	3-7/8	49
Beam height	inch	2-11/64	19-1/2
Channel width	inch	2	4-21/64
Channel height	inch	4	16
Tube square	inch	2-11/32 x 2-11/32	16 x 16
Tube rectangular	inch	2-11/32 x 1-3/16	24 x 16
Flat bar thickness	inch	25/64	1
Flat bar width	inch	4	19-1/2
Angle	inch	2-3/8 x 2-3/8 x 1/4	10 x 10 x 1-7/64
Material thickness HPR400XD	inch inch		3-1/8” (Side Start) 2” (Pierce)
Length (fully automatic)	ft		62’
Weight Capacity			500#/FT

Other capabilities to be achieved

Dog Bone (MF connection) – SSDA Slotted Web
Copes – Holes – Slots – Blockouts
Weld Preps – Beveling – Rat Holes
Piece Marking – Layout Marking
